Tyco Jumpers Cables Paramater

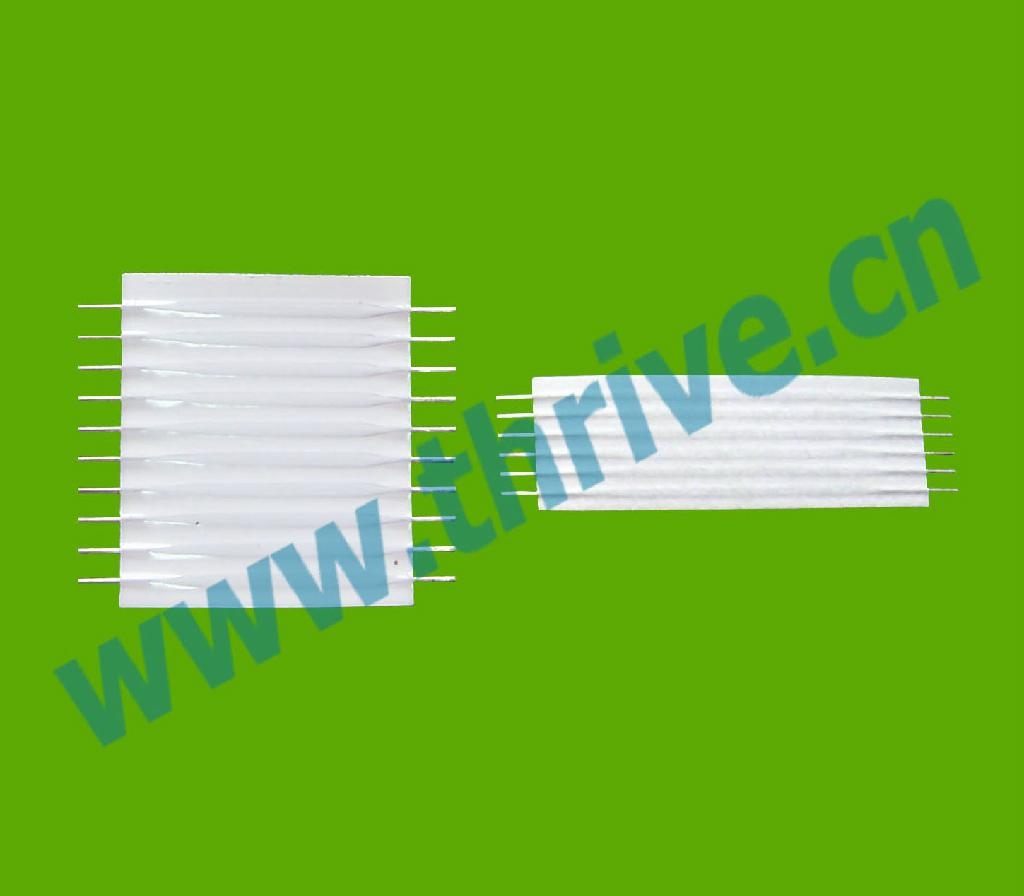

1. Flexstrip Cable RFC(Round Flat Cable) JUMPERS





          Round flat cable/Jumpers, the brief name is RFC. It is a kind of new data cable that it is to be make with Nomex paper, PET insulate material and plate round-flat copper wire of tin thinly. It can communicate in two PCB with
welding and not need connector. it has many advantage, such as temperaturer-resistant, a flexible, curve to fold , the thickness is thin, link in brief and solve electromagnetism to shield (EMI) easily etc.

   It is the most suitable for move the parts to main board 、board to board ,make a data to deliver through a cable in the small scaled electric appliances equipments. The connection of the print head and main board in various printer is very extensively now ,instrument, PLC, scanner, Auto Lamp electric appliances and various electronic equipment etc.



2. Jumper Cable(RFC) Specification

Items

Symbol Unit Parameter
Picth P mm 1.27mm 2.0mm 2.54mm 3.18mm 3.81mm 5.08mm
Pitch tolerance   mm ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1
Number of conductor

N

core   2-30 2-30 2-30 2-25 2-20 2-15
Dia. of conductor D mm 0.3 0.4 0.5 0.5 0.5 0.5
Edge width M mm 1.27 1.27 2.54 2.54 2.54 2.54
Thickness of body T mm 0.28 0.28 0.28 0.28 0.28 0.28
Plugging length S1-S2 mm 3±0.5     3.5±0.5      4±0.5      5±1
Insulation length IL

mm

 L>12mm±2   200mm< L >400mm±2     L >400mm±2
Material of insulation layer      PET:0.06,0.08,0.1mm     Nomex:0.08mm and others



3. Jumper Cable(RFC) Electric Performace

Item

Method of test

Dia. 0.3-0.4-0.5mm tinnig copper

Conductor impedance (Ω/M)

JIS C-3102at 20℃

 0.1

Insulation impedance

DC500V at 20℃

 >100MΩ

Line to line insulation voltage endurance

DC500V for 1min

 No conduction

Rated voltage/temperature



 80V/105℃

Rated current



1.6A / 2A / 3A

Energized

Energized machine test
DC3.0V 0.1mAA

 no turn off and short circuit

Aging

85℃ , 96hrs

Insulation impedance and line to line           insulation voltage endurance are normal

Temperature test cycle

-40℃ for 4hrs->
85℃ for 4hrs->
25℃ for 1hrs(5cyc)

Insulation impedance and line to line insulation voltage endurance are normal

Moisture proof

40℃ 95%RH 96hrs

Insulation impedance and line to line insulation voltage endurance are normal

insulator

Elongation

JIS-K-6732

Min60%  over60%

Tensile strength

JIS-K-6732

Min3.5Kg/sq.mm  over3.5Kg/sq.mm

Abrasion test

Ф0.5mm, 600g
60cyc./min

>10,000Cycles
Over10,000Cycles

Burning test

UL758

pass UL vw-1



4. Shape of RFC

Symbol

Shape

RFC
